Product Overview
The Eminence Man O War guitar speaker is the work horse of tone. A proven and revered sound, very loud and responsive/articulate in every register. Chunky and solid sound with a little top end sparkle.
Characteristics
| Series | Redcoats | |
| Model | Man O War | |
| Application | 12" Open or Closed Back | |
| Configuration | 1, 2, or 4 X 12" | |
| Low End Response | Moderate | |
| Low End Shape | Chunky | |
| Mid-Range Response | Aggressive | |
| Mid-Range Shape | Crisp | |
| High-End Response | Aggressive | |
| Volume/Power | Loudest | |
| Overall Coloration* | A proven and revered sound, very loud and responsive/articulate in every register. Chunky and solid sound with a little top end sparkle | |
| Break-up Modes | Slow | |
| Power Range | Up to 120 watts | |
| Instrument* | Lead/Rhythm Guitar, Harmonica | |
| Genre of Music* | Great for College Rock, Classic Rock, Grunge, and Heavy Metal |
Specifications
| SPECIFICATION | |
| Nominal Basket Diameter | 12", 305 mm |
| Nominal Impedance* | 16 Ω |
| Power Rating* | |
| Program Power | N/A |
| Watts | 120 W |
| Resonance | 91 Hz |
| Usable Frequency Range | 80 Hz - 5 kHz |
| Sensitivity* | 101.6 dB |
| Magnet Weight | 38 oz. |
| Gap Height | 0.312", 7.9 mm |
| Voice Coil Diameter | 1.75", 44 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 91 Hz |
| DC Resistance (Re) | 6.2 Ω |
| Coil Inductance (Le) | 0.43m H |
| Mechanical Q (Qms) | 11.66 |
| Electromagnetic Q (Qes) | 0.72 |
| Total Q (Qts) | 0.68 |
| Compliance Equivalent Volume (Vas) | 38 liters / 1.34 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 41.6 cc |
| Mechanical Compliance of Suspension (Cms) | 0.1 mm/N |
| BL Product (BL) | 12.3 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 31 grams |
| Efficiency Bandwidth Product (EBP) | 127 |
| Maximum Linear Excursion (Xmax) | 0.8 mm |
| Surface Area of Cone (Sd) | 519.5 cm2 |
| Maximum Mechanical Limit (Xlim) | N/A |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 0.071 cu.ft. / 2 liters |
| Overall Diameter | 12.03", 305.6 mm |
| Baffle Hole Diameter | 11.07", 281.2 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.25", 6.4mm |
| Mounting Holes B.C.D. | 11.59", 294.4mm |
| Depth | 5.2", 132.1 mm |
| Net Weight | 8.1 lbs, 3.67 kg |
| Shipping Weight | 9.9 lbs, 4.49 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Non-vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Paper cone edge |
| Dust Cap Composition | Zurette dust cap |

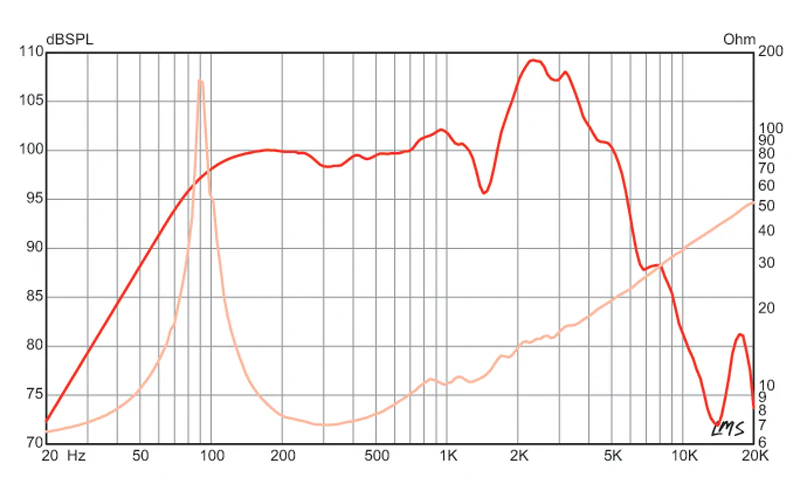

FREQUENCY RESPONSE
